1000-2000m2 per 7hrs JP70-L concrete mortar plaster spray machine pump

FOB Reference Price:Get Latest Price
US $5,800-7,800 / Set | 1 Set/Sets 10sets JP70-L plaster spray pump IN stock (Min. Order)
Supply Ability:
200 Set/Sets per Month
Port:
shanghai/ningbo
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
mortar plaster spray pump
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
wengong
Model Number:
JP70-Lplaster spray pump
Dimension(L*W*H):
2040x820x1270mm
Weight:
395kgs
Certification:
ISO9001:2008
Warranty:
6months
After-sales Service Provided:
Overseas third-party support available
Item:
JP70-L plaster spray pump
Origin of motor:
Germany or China
Origin of air compressor:
Germany or China
Max pumpable grain:
8mm
Theorectial Delivery Height:
0-30m
Theorectial Delivery Distance:
0-60m
H.S. code:
84743100000
Color:
optional
Packaging & Delivery
Packaging Details
wooden carton
Delivery Time
25days
Video Description





Product Description

                                             JP70-L Concrete mortar plaster spray pump





 1. There are two options of air compressor and pumping motar for JP70-L plastering machines.

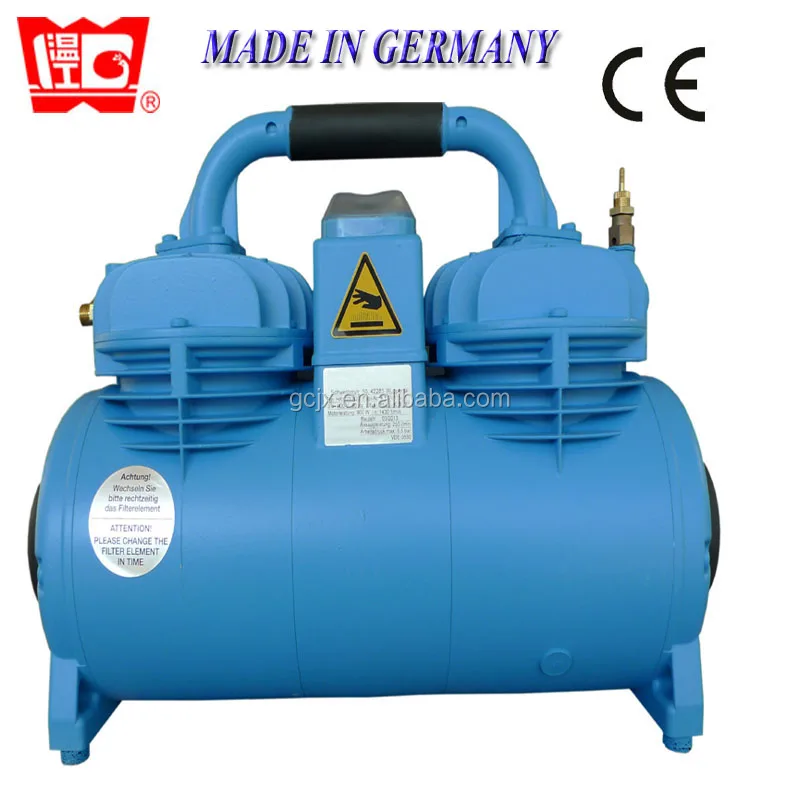

a. handy air compressor replace the common air compressor made in china. Since it can offer lower pressure but larger output to reduce fly ash fell and the mortar more adhesion than the common one. Can achieve 1000m2-2000m2 per 7hours.




b.  handy air compressor is separated and portable, it can avoid the common faulty of old design that mortar plastering machine always need to maintain or repair due to air compressor quality.





 2. For spraying or pumping traditional mortar and pre-mixed plasters, fiber-reinforced and refractory mortars, fireproof materials, self-leveling screeds and for reinforcing injections at controlled pressure.

Technical parameters of JP70-L Mortar plastering machine



Model

JP70-L

Supply power

400V 50Hz

Motor power

kw

4.0/5.1

Compressor power

kw

2.2

Maximum grain size

mm

8

Output

L/min

50

Delivery pressure

bar

30

Horizontal delivery distance

m

60

Vertical delivery distance

m

30

Mixer power

kw

1.1

Mixer volume

l

120

Hopper volume

l

120

Net weight

kg

395

Dimension (L×W×H)

mm

2040×820×1270



 1. JP70-L always is exported to KUWAIT each month, it always is used for fireproofing mortar plastering in tunnel and steel board house.







 2. It's optional to choose air compressor and pumping motor made in German or made in China. JP70-L the main components are same as JP70-P as below shown:





 3. It's suitable for large plastering about 1000-2000m2/7hours. There are 5people as one team: 1for plastering, 1for controlling machine, 1 for feeding hopper, 3for trowelling and finishing wall surface.









 4. JP70-L CE certificate, ISO9001:2008 certificate









Exhibition & Visitng

Welcome to our factory!!!

It would be our great honor to show & test our machine for you.

From left to right:

1. Our engineers in India to help our clients to use JP70-L



2. Our engineers in Zhejiang Zhaoshan Group



3. G.M. and doctor Falken beng of PFT visit us.



4.Expert M. Shanid Khan from Putzmeister visit us.



5.G.M., KJGS Dietar Swbada of BAUMANN in our exbibition



6.G.M. Holger Binader from famous company THIE LENHAUS pride highly of our machine.



7.Expert William from Dupont  technical exchange in our factory.



8. Engineers from UAE visit Zhejiang Construction Group,

to see how our mortar machines used there.





***Clients from AUE/Saudi Arabia/Franch/ Chile/ India visited our factory.





***Exhibition every year---Welcome to our fair
